Bend-Tech 7x Wiki :: Assembly :: Main

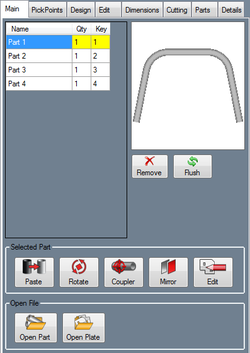

Parts List

The Part List is a list of all parts that have been added to the current Assembly project. Select a part in the list to view a preview of it. The Qty (Quantity) column displays the number of times that the part is used in the current Assembly project and the Key column states the key number given to the part to identify it. To remove a part from the list, click the Remove button. To remove all unused parts from the Master Part List, click the Flush button.

Selected Part

• Paste: To paste a copy of a part from the parts list into the assembly, first select a part. Then click the Paste button. The selected part will then be attached to the cursor. Select a PickPoint in the display to place the part upon.

• Rotate:

• Coupler:

• Mirror:

• Edit:
