Current Item: Plate -- Create -- Dimension -- Vertical


Description

Measures the vertical distance between two points and places that value in the display window.

How-To

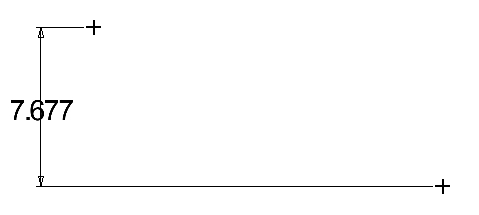

Click the Vertical button and click two points in the display window. A Dimension, along with dimension and extension lines, will appear and move with the cursor. Move the Dimension to the desired location using the cursor and click to place it.
