Arrow Height (Dimensions)

Current Item: Assembly -- Create & Edit -- Dimensions -- Settings -- Arrow Height

Description

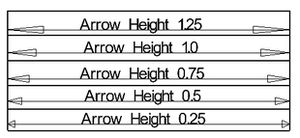

The height (length) of the arrows at the ends of a dimension line.

How-To

Click on the box next to Arrow Height in the value column and enter a new value to replace the existing one. Use the Properties and Apply buttons to update a single dimension with the new value, or use Apply to All to update all dimensions.
