Arrow Type (Dimension)

Current Item: Plate -- Create -- Dimension -- Arrow Type

Description

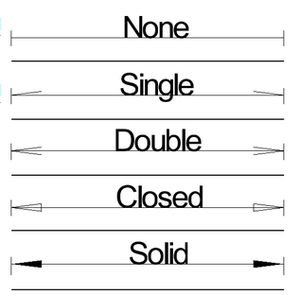

The shape of the arrows at the ends of a dimension line.

How-To

Click on the box next to Arrow Type in the value column and select an option from the drop down menu. Use the Properties and Apply buttons to update a single dimension with the new arrow type, or use Apply to All to update all dimensions.
