Example 5 (Under 90 Degree bends, Move in 3 Directions)

This thread will show some example of making under 90 degree bends. If you haven't gone through the general rules of 3D, then do so: http://www.2020softwaresolutions.com...hread.php?t=48

ex 5.1 Lets start by making an open "L" bracket.

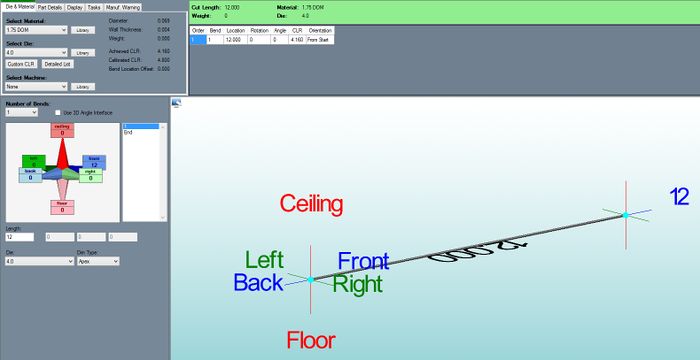

1) Select the "1" from the "bend" selection list.

2) Enter a value of "12" to the front.

NOTE: The tri-star is located at the location where you are currently at. You are entering in the direction(s) and distance(s) from this point to your first bend.

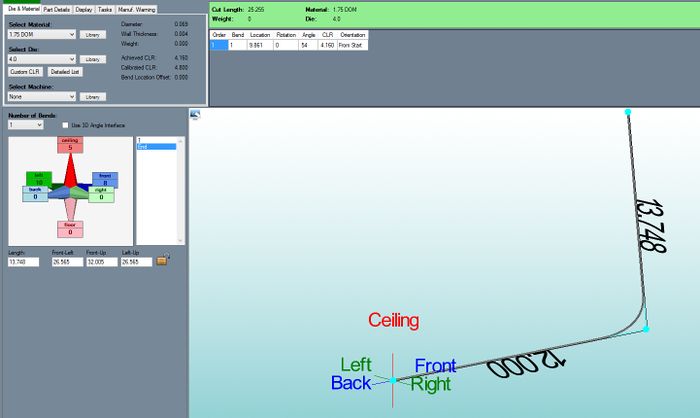

3) Select the "End" from the "bend" selection list.

4) Enter a value of "10" to the left.

5) & Enter a value of "8" to the front.

6) & Enter a value of "5" to the ceiling.

NOTE: Again the tri-star is your current location and you are entering in the directions(s) and distance(s) from this point.

7) Add one more bend (2 bends)

8) Select the "End" from the "bend" selection list.

9) Enter a value of "10" to the left.

Notice the rotations and bend angles are automatically calculated.
