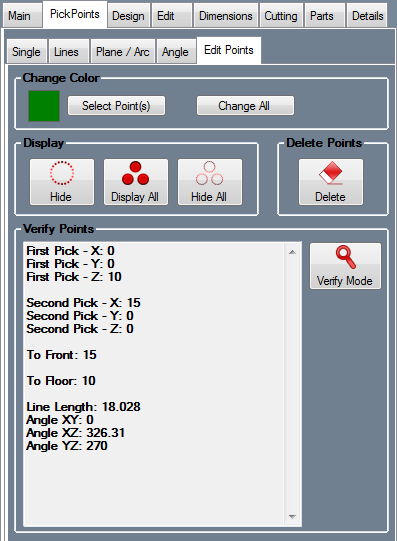

Edit Points
Bend-Tech 7x Wiki :: Assembly :: PickPoints :: Edit Points
Change Color
To change the color of PickPoint(s), first select a color by clicking on the color block icon and choosing a color from the menu. Then click the Select Point(s) button and click on the point(s) in the display frame to change them to the newly select color.
To change the color of all PickPoints, first select a color by clicking on the color block icon and choosing a color from the menu. Then click the Change All button.
Display
Displays or hides PickPoints.
Click the Hide button
and click a PickPoint to toggle if it is displayed or hidden.
Click the Display All button
to display all PickPoints.
Click the Hide All button
to hide all PickPoints.
Delete Points
Click the Delete button
and click on a PickPoint to delete it.
Verify Points
Displays the coordinates of up to two PickPoints and their distance from each other.
Click the Verify Mode button
and click on a PickPoint. Information on that PickPoint will be displayed. Click on a second PickPoint to see information on both PickPoints and their distance from each other.
