Header - Mirror

Bend-Tech 7x Wiki :: Header Design :: Edit :: Mirror

The mirror function can be used to mirror parts in an assembly across a specified axis or a custom defined plane.

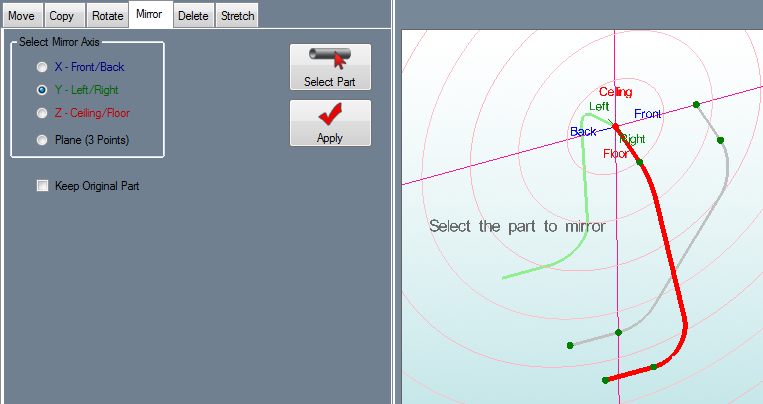

To do so, first click the Select Part button and click on a part in the assembly display frame.

Next, choose an axis to mirror the part across. If the Plane (3 points) option is chosen, three PickPoints will need to be chosen in order to define the plane.

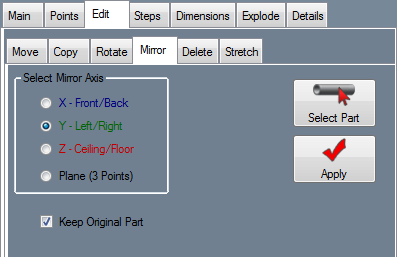

Check the Keep Original Part to treat the mirror as a copy. While this option is checked, the mirrored version of the part and the original part will remain in the design. Otherwise, the original part will be moved to the new mirrored location.

Click the Apply button to finalize the mirror.
