STEP and IGES Import - Part Definition

Contents

[hide]

   1 Introduction
   2 Selecting Features
   3 Circles Only
   4 Circles and Lines
   5 Lines Only
   6 Arcs and Lines
   7 Circles, Arcs, and Lines

Introduction

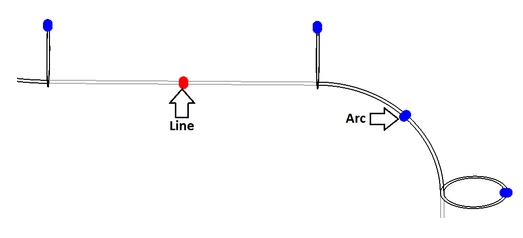

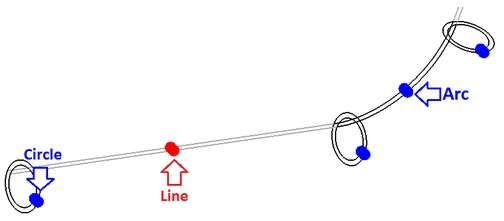

STEP, IGES, and BREP parts can be imported by manually selecting certain features of the part. Parts are represented by lines, circles, and arcs that can be selected using the blue or red pickpoints on each - see image to the right. Depending on the part design and what kind of features are used to represent the part, some methods may be more appropriate than others.

Parts are defined by selecting...

1. Only circles (recommended)

2. Circles and Lines (recommended)

3. Only Lines

4. Arcs and Lines ...or

5. Arcs, Lines, and Circles

Selecting Features

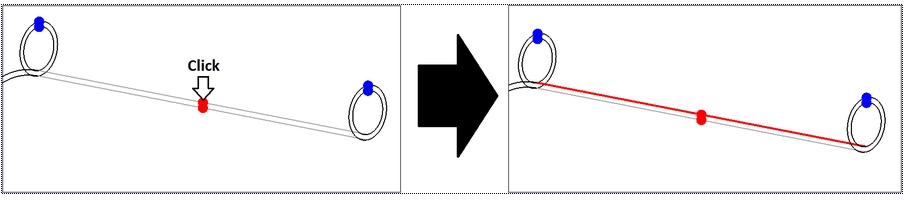

Features must be selected to define a part. To select a feature, first click the start button. Then click directly on the Pickpoint on the feature to select it. Once selected, the feature will be highlighted in red. See image below.

Circles Only

While using this defining method, only circle features will be selected. When defining a part using only circles, these rules below must be followed:

1.) Circles must be selected in order. See image below.

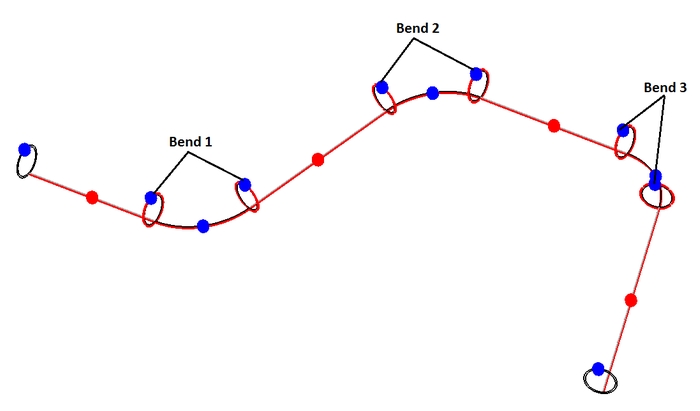

2.) A circle is needed at the start and end of the part and at the start and end of each bend. See image below.

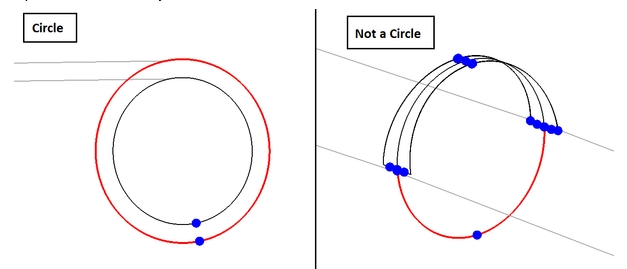

3.) Circles must be complete to be considered actual circles.

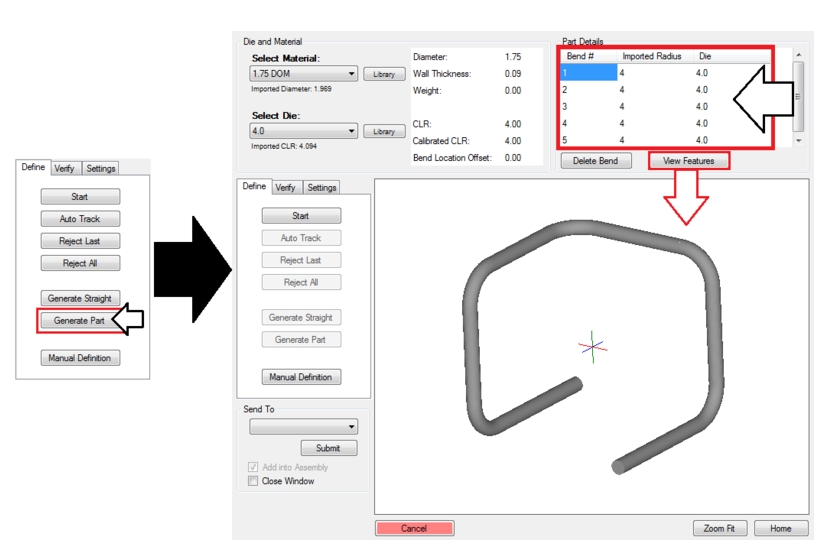

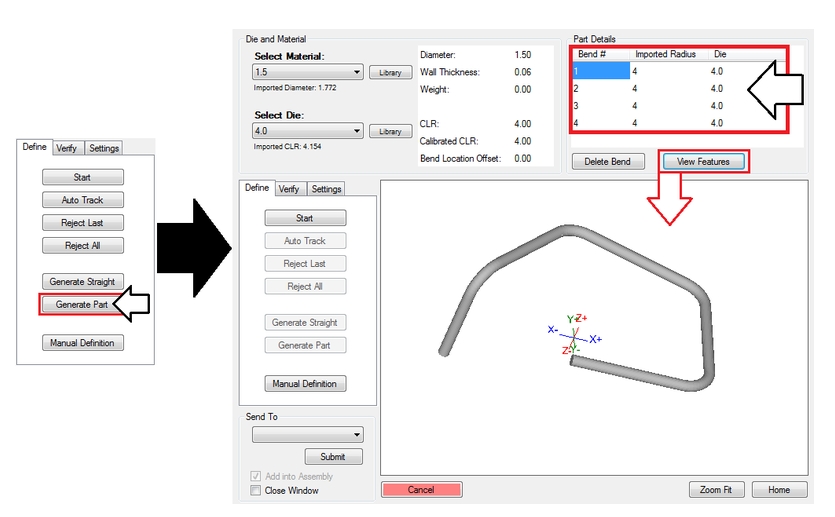

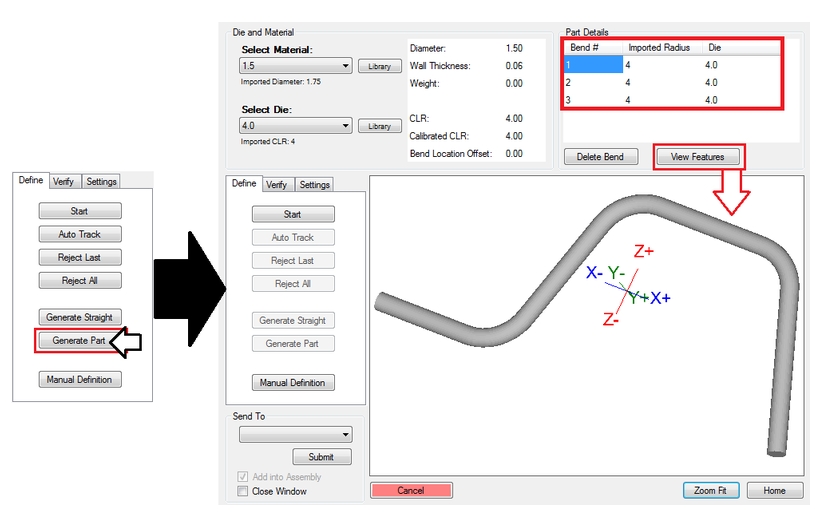

To define a part using circles only, click the start button and select all necessary circles on the part. Once the circles have been selected properly, click the Generate Part button to generate the part. The bend information will be shown in the Part Details chart at the top of the window. This chart will list each bend with the imported radius value and the die chosen for each bend. To toggle between viewing the part in the selected material and the part features, use the Preview Part/View Features button.

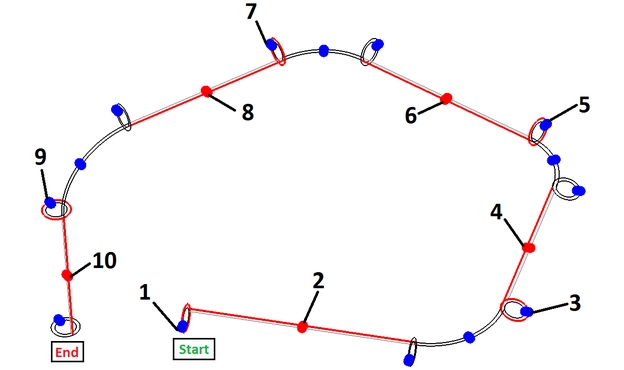

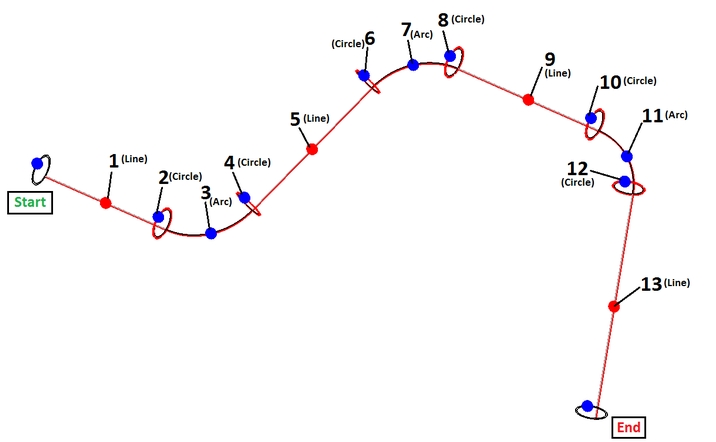

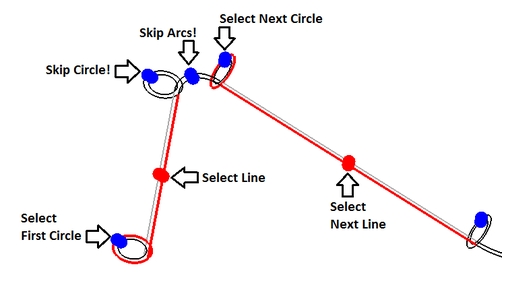

Circles and Lines While using this defining method, circles and lines will be selected. The lines selected do not represent the center line of the tube. The first circle will be the circle that defines the starting edge of the tube. Each single straight line will be paired with one circle that connects to the beginning of the line. For example, select the first circle then the line that extends from that circle. Skip the circle at the end of the selected line and anything between then continue with the following circle. See the image to the right for an example of how to select the circles and lines.

When defining a part this way, these rules below must be followed:

1.) Circles and lines must be selected in order starting with the first circle of the part. See image below.

2.) Each circle and line pair must connect. There cannot be large gaps between the circle and line.

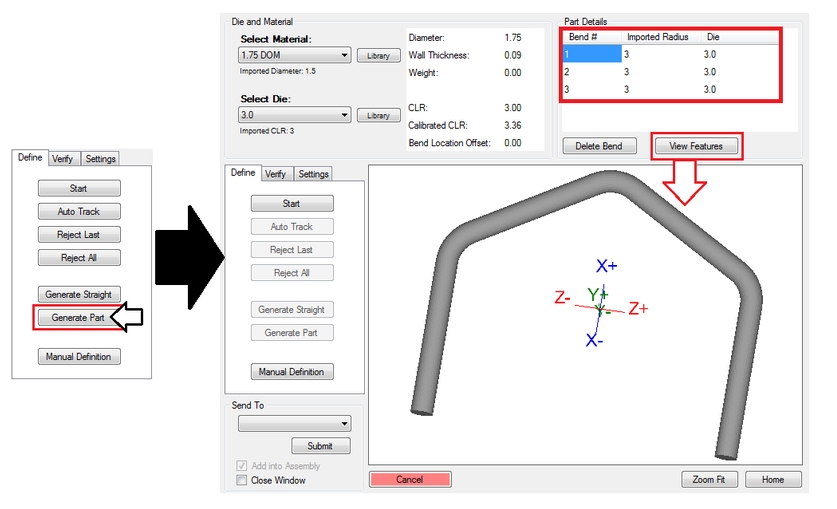

To define a part using circles and lines, click the start button and select all necessary circles and lines on the part. Once these features have been selected, click the Generate Part button to generate the part. The bend information will be shown in the Part Details chart at the top of the window. This chart will list each bend with the imported radius value and the die chosen for each bend. To toggle between viewing the part in the selected material and the part features, use the Preview Part/View Features button.

Lines Only

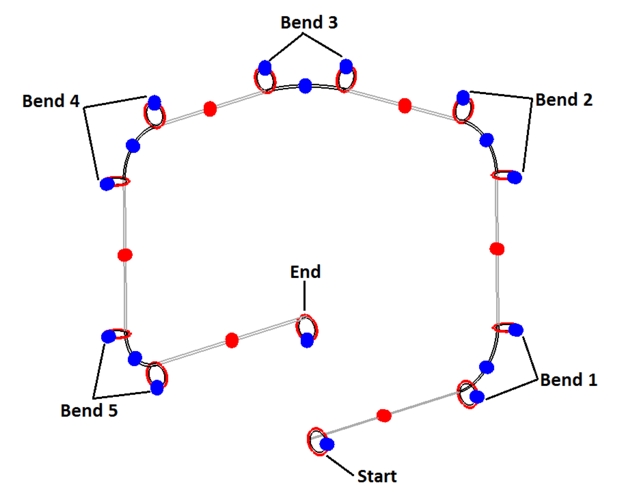

While using this defining method, only straight line features will be selected. The lines selected will represent the center line of the part. To successfully define a part using this method, these rules must be followed:

1.) The lines must be selected in order.

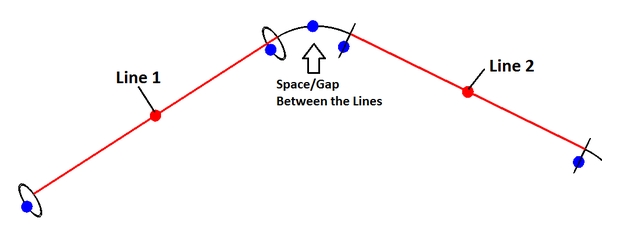

2.) The lines do not have to connect. Spaces are allowed between the selected lines.

To define a part using lines, click the start button and select the lines on the part. Once they have been selected, click the Generate Part button to generate the part. The bend information will be shown in the Part Details chart at the top of the window. This chart will list each bend with the imported radius value and the die chosen for each bend. To toggle between viewing the part in the selected material and the part features, use the Preview Part/View Features button.

Arcs and Lines While using this defining method, straight lines and arc features will be selected. The selected lines and arcs will represent the center line of the part. To successfully define a part using arcs and lines, these rules must be followed:

1.) The lines an arcs must be selected in order.

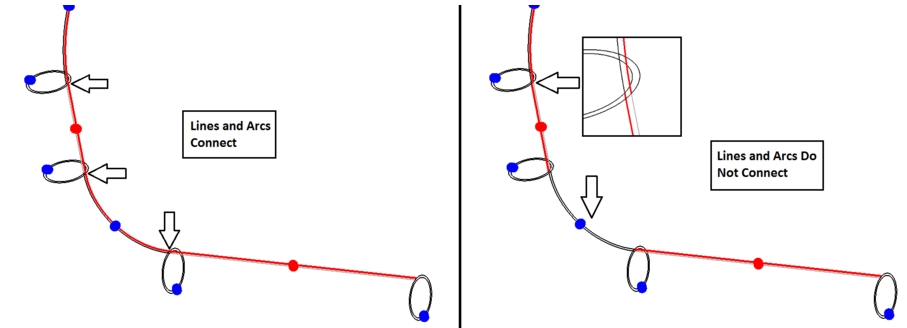

2.) The selected line and arc features must connect. There cannot be large gaps between the lines and arcs.

To define a part using lines, click the start button and select the lines and arcs. Once they have been selected, click the Generate Part button to generate the part. The bend information will be shown in the Part Details chart at the top of the window. This chart will list each bend with the imported radius value (based on the radius of the selected arc for that particular bend) and the die chosen for each bend. To toggle between viewing the part in the selected material and the part features, use the Preview Part/View Features button.

Circles, Arcs, and Lines

While defining parts using this method, line, circle, and arc features will be selected. The selected lines and arcs will not represent the center line of the part. To successfully define a part using circles, arcs, and lines, these rules must be followed:

1.) The circles, lines, and arcs must be selected in order.

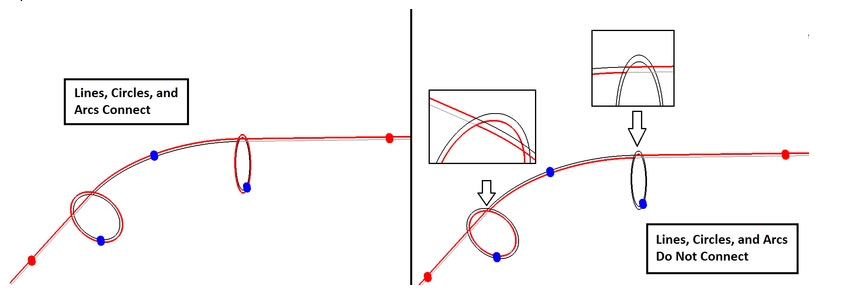

2.) Each circle, line, and arc must connect.

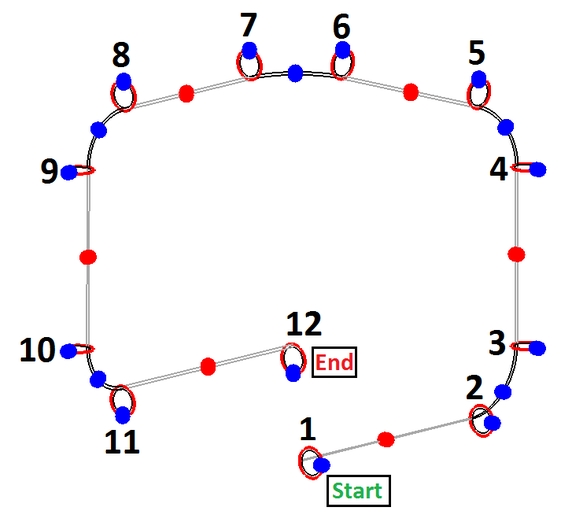

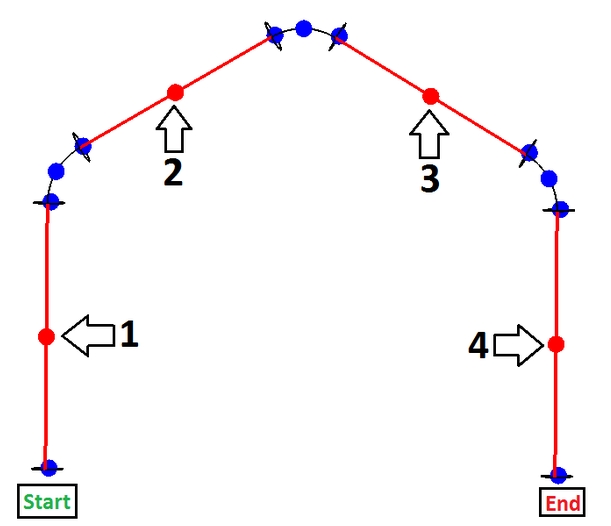

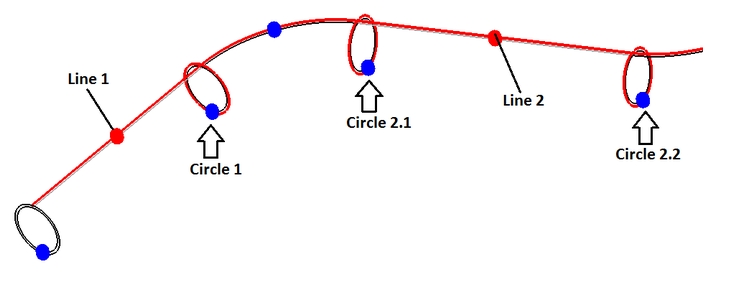

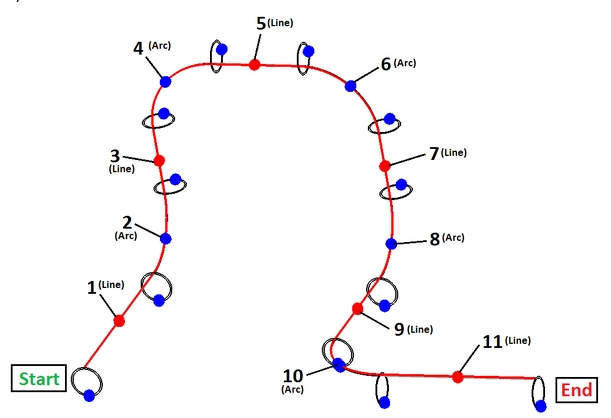

3.) Each straight line needs one circle at the start or end. Straight lines can have circles on both ends, but it is not required. For example, in the image below, line 1 has the circle at the end (Circle 1) selected, but line 2 has both the start and end circles (Circle 2.1 and circle 2.2) selected because it is in between two arcs.

4.) Each arc needs a circle on the start and end of each arc.

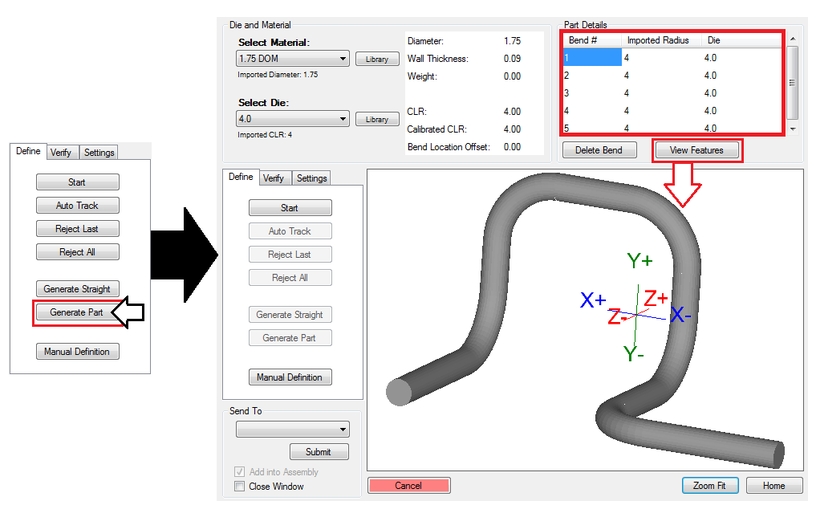

To define a part using lines, circles, and arcs, click the start button and select the features. Once they have been selected, click the Generate Part button to generate the part. The bend information will be shown in the Part Details chart at the top of the window. This chart will list each bend with the imported radius value (based on the radius of the selected arc for that particular bend) and the die chosen for each bend. To toggle between viewing the part in the selected material and the part features, use the Preview Part/View Features button.
