Roll Cage Templates

From Bend-Tech 7x Wiki
Jump to: navigation, search

Bend-Tech 7x Wiki :: Roll Cage Templates

Due to its length, the Roll Cage Templates Guide has a Table of Contents to accommodate the user.


Contents

Things to Know

The Roll Cage Templates options allow for a variety of Tube/Pipe created parts to be designed at the user's specific dimensions. Parts created in the Roll Cage Templates designer can be brought into Assembly and other select interfaces. Parts can also be cut and the wrappers for these cuts can be printed out after being sent to Single Part interfaces.

To open a new Roll Cage Template design:

  • Select the "Roll Cage Template" RCMSPTtemplateicon.png option from the Task Menu that appears when the software starts up, when all designs are closed, or through the view menu.
  • When opening a new template window, it is easier if the user selects the "Maximize" Min Max Close Tab.png button right away. This way, the part chosen by the user will appear in the center of the display area and will not be obstructed by the template's illustration in the upper left hand corner of the screen.
  • Newly created template designs will be added to the existing list as they are developed. New templates will appear with regular updates.

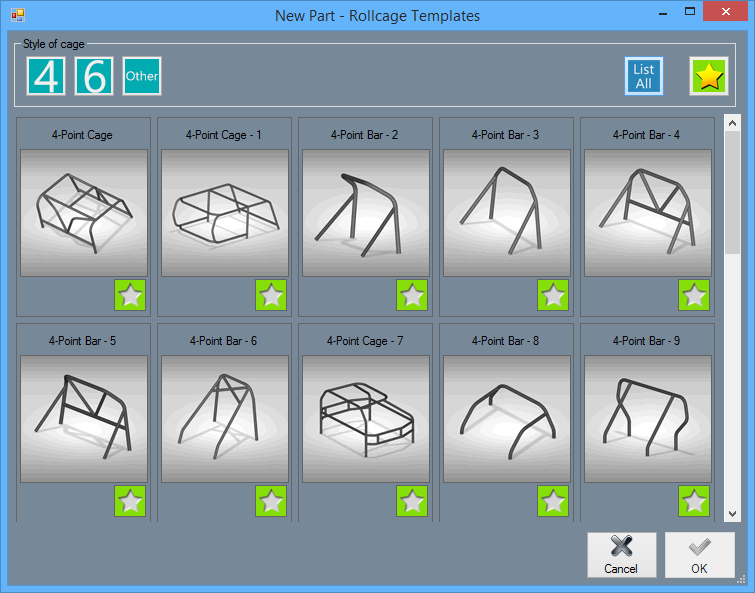

Template Categories

Style of Cage

Msp style of cage1.png

  • The "Style of Cage" section shows all of the categories of Roll Cage Templates available.
  • Selecting a style from the list will open a new page showing variations of template options for the user to open and adjust to their desired dimensions.

Other Msr other etc.png

  • The "'Other" button will open a new page showing templates that don't easily fall into a discernible category.

List All Msp list all.png

  • The "List All" button will show every Roll Cage Template available.

Star 'Favorite' Button Msp star.png

  • The Star, or 'favorite' button will show all the templates that the user has saved to their favorites.
  • Clicking the star will change it from white to gold, which indicates a user favorite. All gold starred templates are user favorites.

Template Tabs

  • Every template has two tabs. These two tabs will always have the same buttons and entry fields. The only distinction between the templates is the "Current Template Values" section and what the dimensions there represent.

Die & Material:

  • From here, users can choose the Material being used for the design, specify the Die that will be used, and assign a Custom CLR (SE only) to the part displayed to the right.

Part Details

  • "Name:" is where the user can name the project.
  • "Notes:" is where the user can make notes about the part's dimensions or specifications.
  • "Date:" is where the user can mark when the part was created or when it is set to be manufactured.
  • "Revision:" is where the user can update the date when the part specifications were revised.
  • "Description:" is where the user can provide a description of the part's specifications.
  • "Part Color:" is where the user can change the color of the tubing that will be seen in the project.
  • "Units:" is where the user can change the length increments by selecting either the "Inches" or "Millimeters" options.

Display

Once a template in RTC is selected, the cage will appear in the display window. In the upper left-hand corner of the display screen there are three buttons. These buttons represent the following in order from left to right. RTCleg icons.png

  • Toggle the display in front of or behind the legend.
  • Print the legend.
  • See legend in a new window.

Transfer Interface

When transferring a single part or assembly of multiple parts from any designer to the Assembly designer, the user can refer to this guide for assistance.

The Transfer Menu

  • When transferring a part to Assembly, select the project in the display area, or a number or parts from the parts list and select the "Transfer Drop Down Menu" Transfer.png at the top of the screen on the [Icon Toolbar].
  • From there, the options that are available include the "New Assembly" option, or the "Existing Assembly" option. Select the option that corresponds with the desired assembly project to begin the transferring process.
  • Upon transferring, a window will appear asking if you'd like to automatically place this project into the design. If you select Yes, the project or part will be placed into the design and anchored to the Tri-Star. If you select No, the project or part will be attached to your cursor so that you can click on a point of your choice to place it there.

In the event that you select the No button, this project or part will remain attached to your cursor until you switch away from the Main tab.

Roll Cages

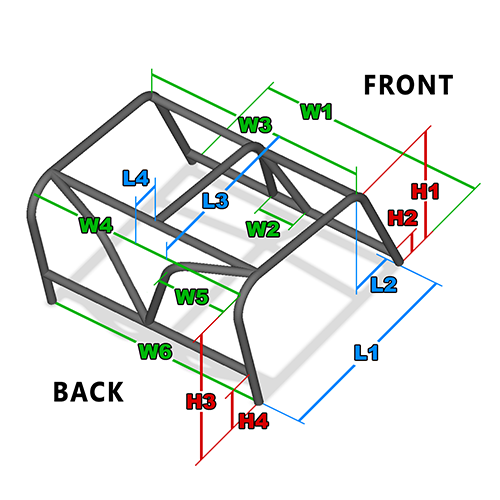

4-Point Cage


Current Template Values:

  • L2 - Windshield - (default 6)
  • L3 - Roof Length - (default 36)
  • L4 - Cross-Bar Offset - (default 6)


  • W1 - Hood Width - (default 36)
  • W2 - 'V'-Bars Width - (default 8)
  • W3 - Front Roof Width - (default 36)
  • W4 - Rear Roof Width - (default 36)
  • W5 - Rear Width - (default 12)
  • W6 - Rear 'V'-Bars Offset - (default 36)


  • H1 - Front Height - (default 24)
  • H2 - Hood Height - (default 4)
  • H3 - Rear Height - (default 36)
  • H4 - Seat Back Height - (default 6)

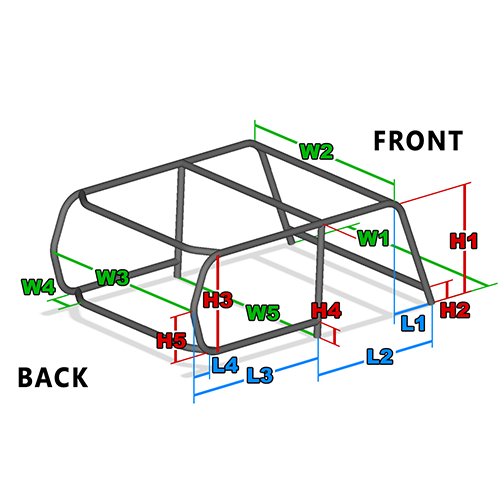

4-Point Cage - 1


Current Template Values:

  • L1 – Windshield – (default 8)
  • L2 – Door Length – (default 36)
  • L3 – Cargo Length – (default 36)
  • L4 – Cargo Bump-out Length – (default 4)


  • W1 – Hood Width – (default 48)
  • W2 – Front Roof Width – (default 48)
  • W3 – Rear Roof Width – (default 48)
  • W4 – Cargo Offset – (default 8)
  • W5 – Door Width – (defaults 48)


  • H1 – Front Height – (default 36)
  • H2 – Hood Height – (default 4)
  • H3 – Door Height – (default 30)
  • H4 – Rear Height – (default 6)
  • H5 – Cargo Bump-out Height – (default 16)

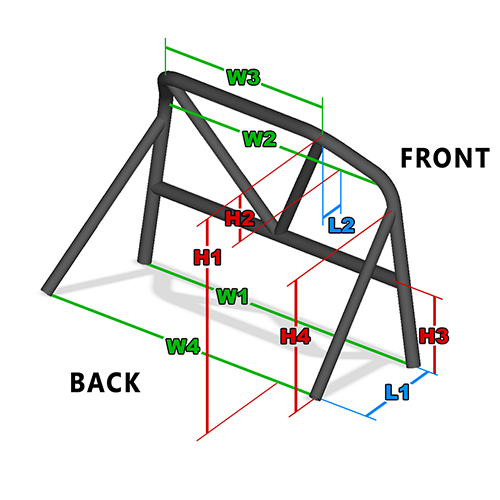

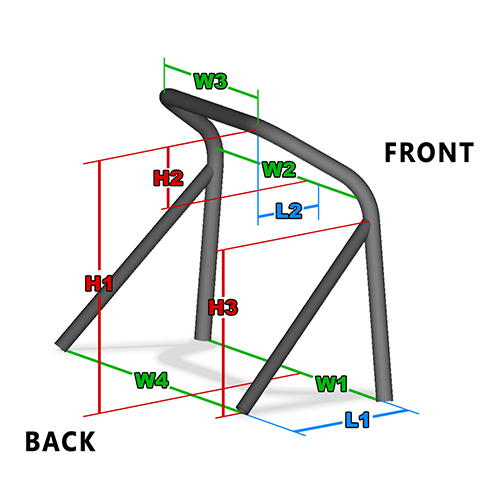

4-Point Bar - 2


Current Template Values:

  • L1 – Total Length – (default 36)
  • L2 – Hoop Offset – (default 12)


  • W1 – Hoop Base – (default 36)
  • W2 – Hoop Mid – (default 36)
  • W3 – Hoop Top – (default 24)
  • W4 – Strut Width – (default 36)


  • H1 – Hoop Height – (default 36)
  • H2 – Hoop Top Height – (default 8)
  • H3 – Strut Height – (default 24)






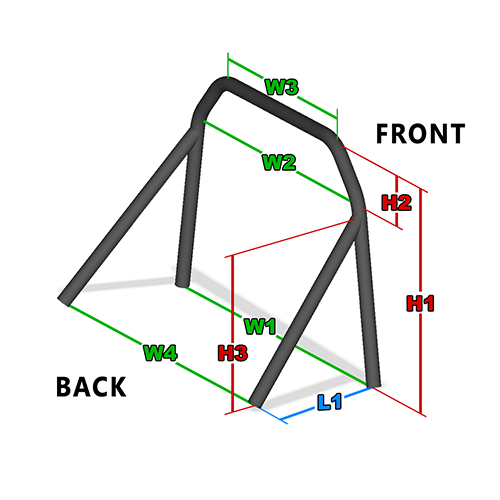

4-Point Bar - 3


Current Template Values:

  • L1 - Total Length - (default 36)


  • W1 - Hoop Base - (default 36)
  • W2 - Hoop Mid - (default 36)
  • W3 - Hoop Top - (default 24)
  • W4 - Strut Width - (default 36)


  • H1 - Hoop Height - (default 36)
  • H2 - Hoop Top Drop - (default 8)
  • H3 - Strut Height - (default 24)







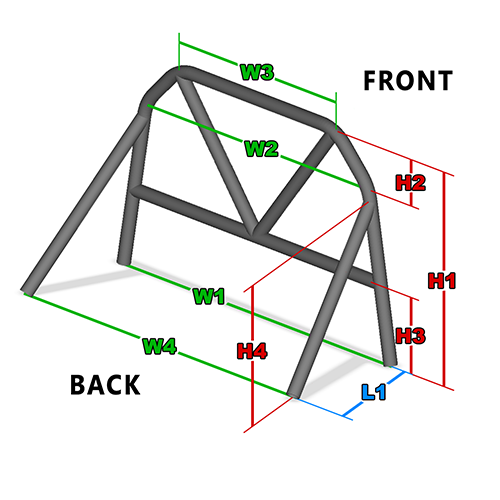

4-Point Bar - 4


Current Template Values:

  • L1 - Total Length - (default 36)


  • W1 - Hoop Base - (default 36)
  • W2 - Hoop Mid - (default 36)
  • W3 - Hoop Top - (default 24)
  • W4 - Strut Width - (default 36)


  • H1 - Hoop Height - (default 36)
  • H2 - Hoop Top Drop - (default 8)
  • H3 - Seat Back Height - (default 18)
  • H4 - Strut Height - (default 24)






4-Point Bar - 5


Current Template Values:

  • L1 - Total Length - (default 36)
  • L2 - Hoop Offset - (default 12)


  • W1 - Hoop Base - (default 36)
  • W2 - Hoop Mid - (default 36)
  • W3 - Hoop Top - (default 24)
  • W4 - Strut Width - (default 36)


  • H1 - Hoop Height - (default 36)
  • H2 - Hoop Top Drop - (default 8)
  • H3 - Seat Back Drop - (default 18)
  • H4 - Strut Height - (default 24)

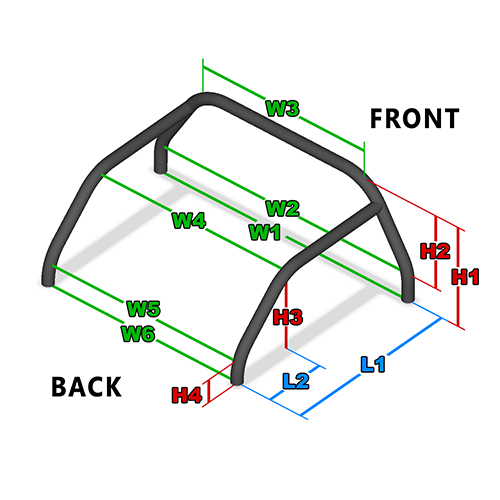

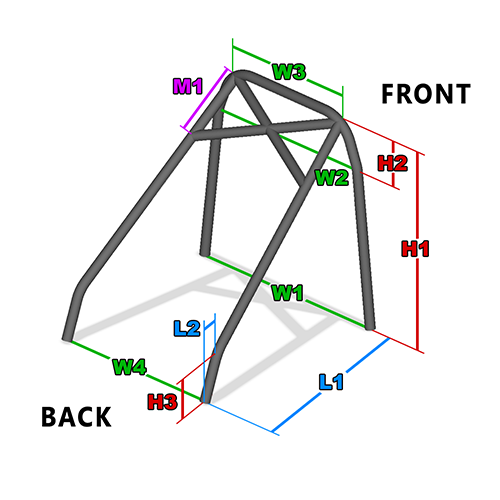

4-Point Bar - 6


Current Template Values:

  • L1 - Total Length - (default 36)
  • L2 - Rear Leg Offset - (default 4)


  • W1 - Hoop Base - (default 36)
  • W2 - Hoop Mid - (default 30)
  • W3 - Hoop Top - (default 24)
  • W4 - Strut Width - (default 30)


  • H1 - Hoop Height - (default 36)
  • H2 - Hoop Top Drop - (default 8)
  • H3 - Rear Leg Height - (default 8)


  • M1 - X-Bar Size - (default 12)

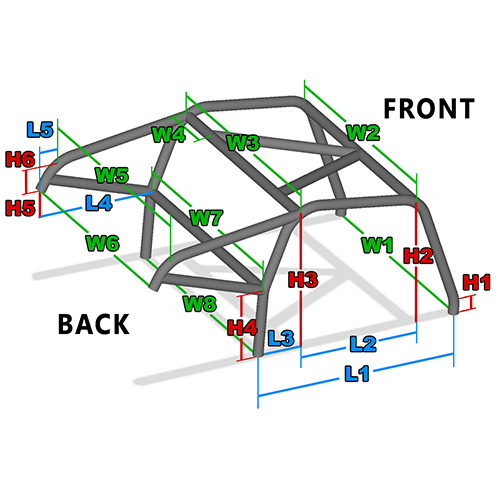

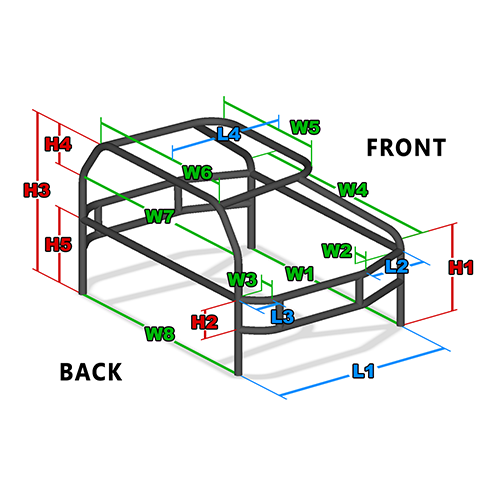

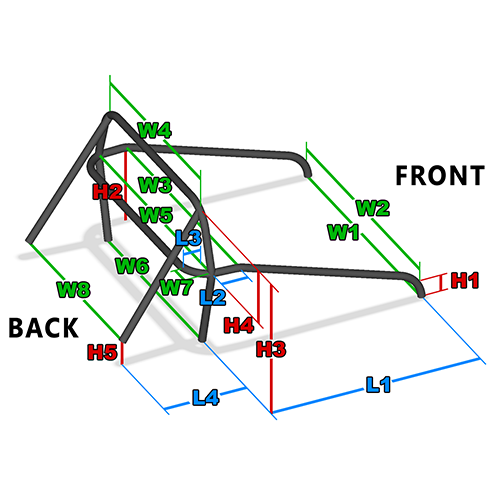

4-Point Cage - 7


Current Template Values:

  • L1 - Total Length - (default 36)
  • L2 - Door Front - (default 8)
  • L3 - Door Rear Length - (default 8)
  • L4 - Roof Length - (default 24)


  • W1 - Front Leg Width - (default 48)
  • W2 - Door Front Offset - (default 4)
  • W3 - Door Rear Offset - (default 4)
  • W4 - Windshield Width - (default 48)
  • W5 - Front Roof Width - (default 36)
  • W6 - Hoop Top - (default 36)
  • W7 - Hoop Mid - (default 48)
  • W8 - Hoop Base - (default 48)


  • H1 - Windshield Height - (default 12)
  • H2 - Door Support Height - (default 4)
  • H3 - Hoop Height - (default 36)
  • H4 - Hoop Top Drop - (default 12)
  • H5 - Seat Back/Door Top - (default 10)

4-Point Bar - 8


Current Template Values:

  • L1 - Total Length - (default 36)
  • L2 - Rear Strut Leg - (default 12)


  • W1 - Hoop Base - (default 48)
  • W2 - Hoop Mid - (default 48)
  • W3 - Hoop Top - (default 36)
  • W4 - Leg Top - (default 36)
  • W5 - Leg Mid - (default 36)
  • W6 - Leg Base - (default 36)


  • H1 - Hoop Height - (default 24)
  • H2 - Hoop Top Drop - (default 20)
  • H3 - Strut Mid Height - (default 18)
  • H4 - Strut Leg Height - (default 8)




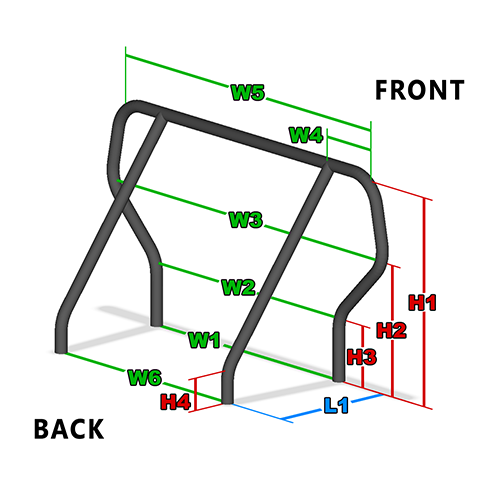

4-Point Bar - 9


Current Template Values:

  • L1 - Total Length - (default 24)


  • W1 - Hoop Base - (default 32)
  • W2 - Hoop Mid 1 - (default 32)
  • W3 - Hoop Mid 2 - (default 42)
  • W4 - Strut Offset - (default 8)
  • W5 - Hoop Top - (default 42)
  • W6 - Leg Base - (default 32)


  • H1 - Hoop Height - (default 36)
  • H2 - Hoop Mid - (default 20)
  • H3 - Hoop Base - (default 12)
  • H4 - Strut Leg Height - (default 8)

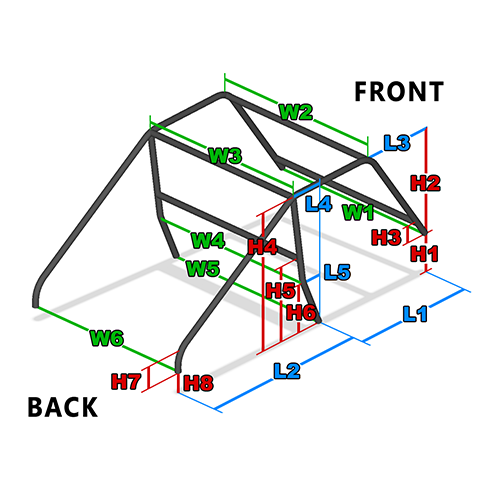

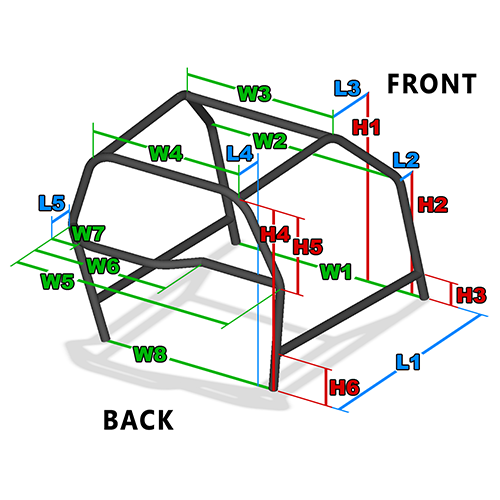

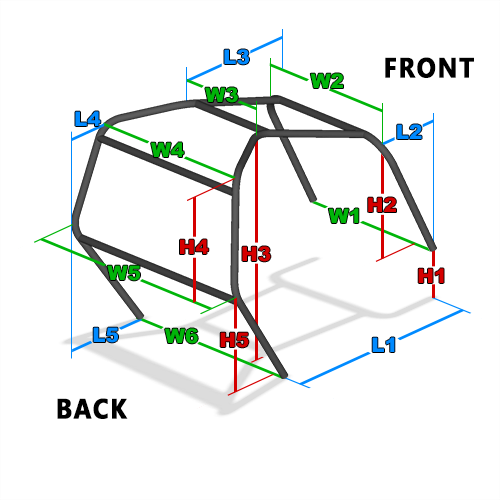

4-Point Cage - 10


Current Template Values:

  • L1 – Total Length – (default 36)
  • L2 – Windshield – (default 8)
  • L3 – Front Roof Length – (default 20)
  • L4 – Rear Top Offset – (default 6)
  • L5 - Rear Base Offset - (default 12)


  • W1 – Front Hoop Base – (default 32)
  • W2 – Front Hoop Top – (default 32)
  • W3 – Roof Mid Width – (default 24)
  • W4 – Roof Rear Width – (default 30)
  • W5 – Rear Mid Width – (defaults 36)
  • W6 - Rear Base Width - (default 36)


  • H1 – Front Leg Offset – (default 8)
  • H2 – Windshield Height – (default 24)
  • H3 – Total Height – (default 36)
  • H4 – Rear Top Height – (default 15)
  • H5 – Rear Base Height – (default 15)

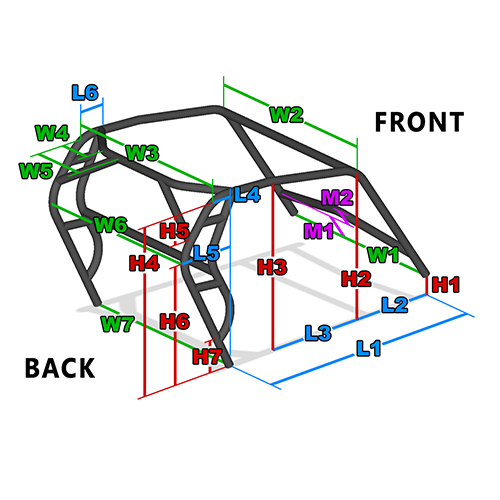

4-Point Bar - 11


Current Template Values:

  • L1 – Total Length – (default 42)
  • L2 – Windshield – (default 12)
  • L3 – Front Roof Length – (default 20)
  • L4 – Rear Roof Length – (default 2)
  • L5 - Mid Rear Length - (default 10)
  • L6 - Door Support Offset - (default 6)


  • W1 – Windshield Width – (default 36)
  • W2 – Front Roof Width – (default 36)
  • W3 – Rear Roof Width – (default 36)
  • W4 – Rear Roof Bend Offset – (default 6)
  • W5 – Rear Support Width – (defaults 10)
  • W6 - Rear Mid Width - (default 36)
  • W7 - Rear Leg Width - (default 36)


  • H1 – Front Leg Offset – (default 4)
  • H2 – Front Roof Height – (default 32)
  • H3 – Mid Roof Height – (default 36)
  • H4 – Rear Roof Height – (default 36)
  • H5 – Rear Support Height – (default 10)
  • H6 – Rear Mid Bend Height – (default 20)
  • H7 – Door Support Height – (default 4)


  • M1 - Windshield Bar Length - (default 6)
  • M2 - Windshield Bar Offset - (default 10)

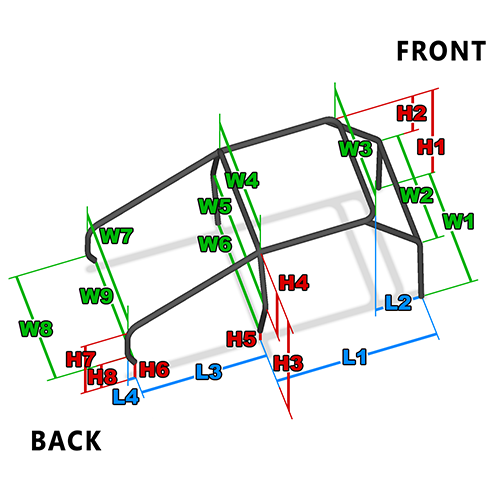

4-Point Cage - 12


Current Template Values:

  • L1 – Total Length – (default 36)
  • L2 – Windshield Length – (default 4)
  • L3 – Front Roof Length – (default 12)
  • L4 – Top Hoop Offset – (default 4)
  • L5 - Seat Back Offset - (default 6)


  • W1 – Front Leg Width – (default 36)
  • W2 – Windshield Width – (default 36)
  • W3 – Front Roof Width – (default 28)
  • W4 – Hoop Top Width – (default 28)
  • W5 – Hoop Mid Width – (defaults 40)
  • W6 - Seat Back Width - (default 24)
  • W7 - Seat Back Offset - (default 6)
  • W8 - Hoop Base Width - (default 36)


  • H1 – Front Height – (default 36)
  • H2 – Windshield Height – (default 18)
  • H3 – Front Door Bar Height – (default 4)
  • H4 – Hoop Height – (default 36)
  • H5 – Hoop Top Drop – (default 10)
  • H6 – Rear Door Bar Height – (default 6)

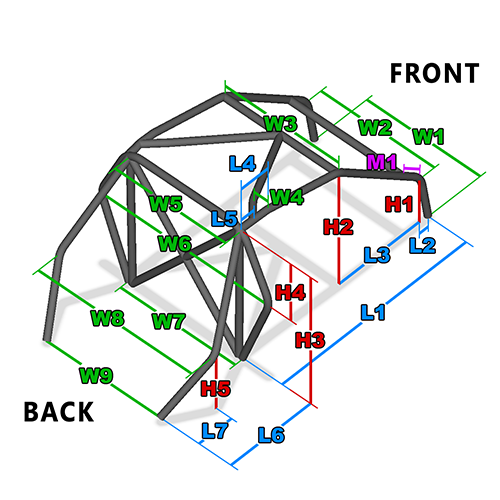

4-Point Cage - 13


Current Template Values:

  • L1 – Total Length – (default 60)
  • L2 – Front Roof Length – (default 20)
  • L3 – Rear Lower Leg Offset – (default 10)
  • L4 – Rear Mid Leg Offset – (default 10)
  • L5 - Rear Upper Leg Offset - (default 10)
  • L6 - Cross Bar Length - (default 24)


  • W1 – Front Leg Width – (default 48)
  • W2 – Front Roof Width – (default 48)
  • W3 – Front Cross Bar Width – (default 24)
  • W4 – Cross Bar Brace Width – (default 24)
  • W5 – Rear Roof Width – (defaults 36)
  • W6 - Rear Cross Bar Width - (default 24)
  • W7 - Upper Rear Leg Width - (default 48)
  • W8 - Mid Rear Leg Width - (default 48)
  • W9 - Lower Rear Leg Width - (default 48)


  • H1 – Front Leg Height – (default 24)
  • H2 – Front Roof Height – (default 36)
  • H3 – Cross Bar Height – (default 0)
  • H4 – Rear Roof Height – (default 70)
  • H5 – Upper Rear Leg Height – (default 18)
  • H6 – Lower Rear Leg Height – (default 36)

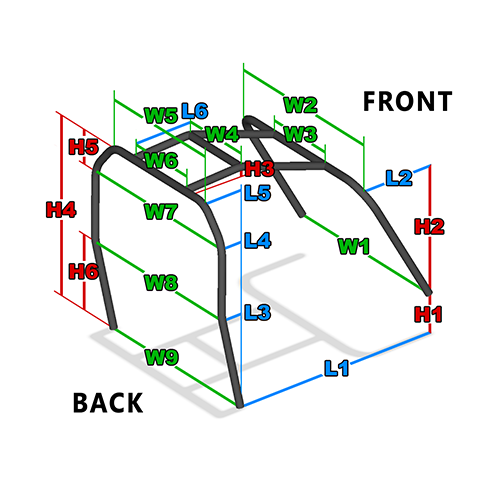

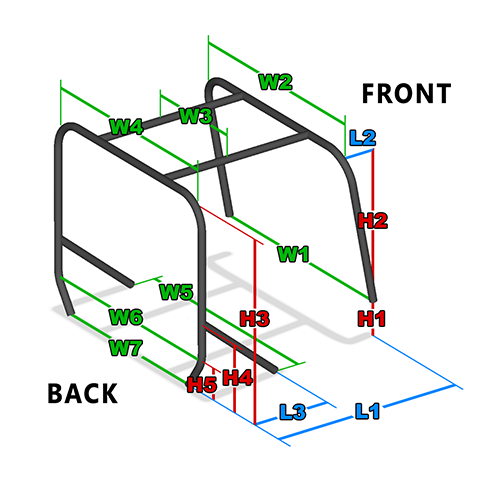

4-Point Cage - 14


Current Template Values:

  • L1 – Total Length – (default 48)
  • L2 – Front Roof Length – (default 18)
  • L3 – Rear Brace Length – (default 24)


  • W1 – Front Leg Width – (default 48)
  • W2 – Front Roof Width – (default 48)
  • W3 – Roof Brace Width – (default 24)
  • W4 – Rear Roof Width – (default 48)
  • W5 – Rear Brace Width – (defaults 48)
  • W6 - Rear Mid Bend Width - (default 48)
  • W7 - Rear Leg Width - (default 40)


  • H1 – Front Leg Height – (default 12)
  • H2 – Front Roof Height – (default 48)
  • H3 – Rear Roof Height – (default 60)
  • H4 – Rear Brace Height – (default 24)
  • H5 – Rear Leg Bend Height – (default 12)

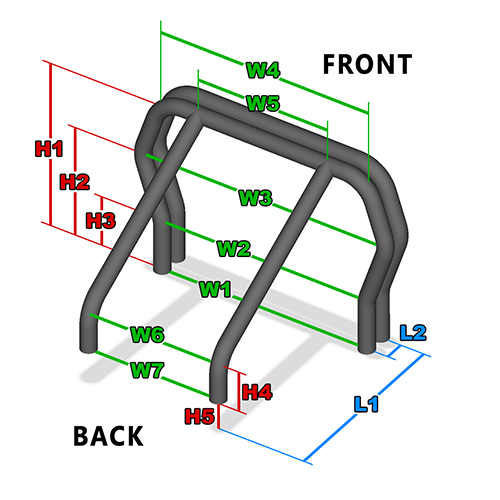

4-Point Cage - Extra Bar


Current Template Values:

  • L1 – Total Length – (default 48)
  • L2 – Bar Length – (default 4)


  • W1 – Front Leg Width – (default 56)
  • W2 – Front Lower Bend Width – (default 56)
  • W3 – Front Upper Bend Width – (default 62)
  • W4 – Roof Width – (default 56)
  • W5 – Brace Width – (defaults 32)
  • W6 - Brace Bend Width - (default 32)
  • W7 - Brace Base Width - (default 32)


  • H1 – Front Leg Height – (default 36)
  • H2 – Front Upper Bend Height – (default 24)
  • H3 – Front Lower Bend Height – (default 12)
  • H4 – Brace Bend Height – (default 6)
  • H5 – Brace Height – (default 6)

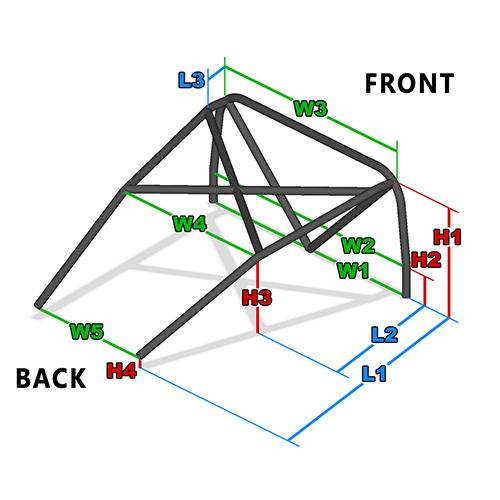

5-Point Cage


Current Template Values:

  • L1 – Total Length – (default 72)
  • L2 – Lower Brace Length – (default 36)
  • L3 – Upper Brace Length – (default 6)


  • W1 – Front Leg Width – (default 56)
  • W2 – Front Leg Bend Width – (default 56)
  • W3 – Front Roof Width – (default 48)
  • W4 – Lower Brace Width – (default 36)
  • W5 – Rear Leg Width – (defaults 36)


  • H1 – Front Roof Height – (default 36)
  • H2 – Front Leg Bend Height – (default 12)
  • H3 – Lower Brace Height – (default 24)
  • H4 – Rear Leg Height – (default 4)

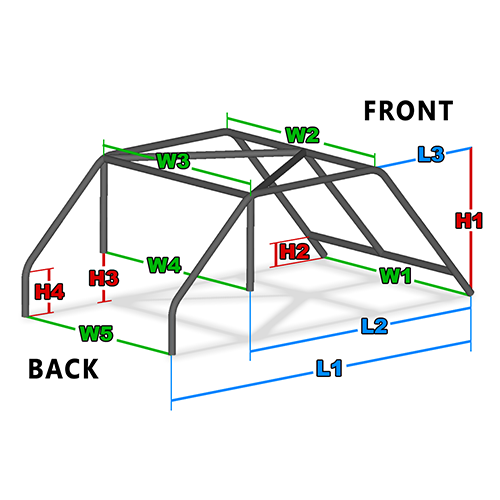

6-Point Cage


Current Template Values:

  • L1 – Total Length – (default 65)
  • L2 – Door Length – (default 48)
  • L3 – Windshield Length – (default 24)


  • W1 – Hood Width – (default 36)
  • W2 – Front Roof Width – (default 36)
  • W3 – Rear Roof Width – (default 36)
  • W4 – Rear Width – (default 36)
  • W5 – Door Width – (defaults 36)


  • H1 – Total Height – (default 24)
  • H2 – Hood Height – (default 4)
  • H3 – Door Height – (default 6)
  • H4 – Rear Height – (default 6)



6-Point Cage - 1


Current Template Values:

  • L1 – Total Length – (default 46)
  • L2 – Roof Length – (default 28)
  • L3 – Door Length – (default 4)
  • L4 – Rear Strut Length – (default 32)
  • L5 - Rear Bend Length - (default 4)


  • W1 – Hood Width – (default 30)
  • W2 – Front Roof Width – (default 30)
  • W3 – Rear Roof Width – (default 30)
  • W4 – Roof X-Bar Offset – (default 6)
  • W5 – Rear Bend Width – (defaults 30)
  • W6 - Rear Width - (default 30)
  • W7 - Seat Back Width - (default 30)
  • W8 - Door Bar Width - (default 30)


  • H1 – Hood Height – (default 4)
  • H2 – Front Door Height – (default 3224)
  • H3 – Rear Door Height – (default 24)
  • H4 – Rear Strut Height – (default 6)
  • H5 – Rear Strut Offset – (default 2)
  • H6 – Rear Bend Offset – (default 6)

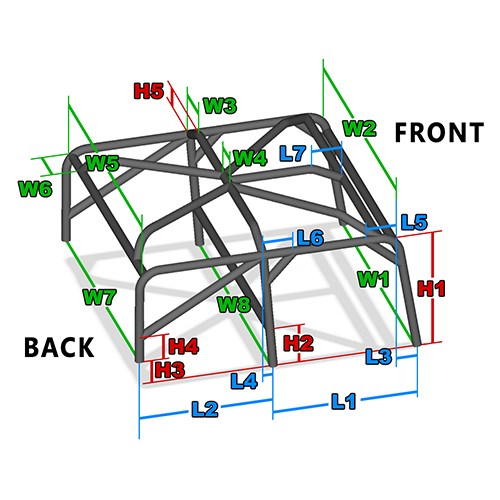

6-Point Cage - 2


Current Template Values:

  • L1 – Door Length – (default 36)
  • L2 – Cargo Length – (default 36)
  • L3 – Windshield Length – (default 4)
  • L4 – Door Offset – (default 4)
  • L5 - Strut 1 Length - (default 8)
  • L6 - Strut 2 Length - (default 8)
  • L7 - Roof Offset - (default 8)


  • W1 – Windshield Width – (default 48)
  • W2 – Front Roof Width – (default 48)
  • W3 – Roof Offset – (default 8)
  • W4 – Roof X-Bar Offset – (default 6)
  • W5 – Rear Roof Width – (defaults 48)
  • W6 - Rear Brace Offset - (default 8)
  • W7 - Rear Width - (default 48)
  • W8 - Door Width - (default 48)


  • H1 – Total Height – (default 36)
  • H2 – Seat Bar Height – (default 12)
  • H3 – Rear Height – (default 8)
  • H4 – Rear Strut Height – (default 8)
  • H5 – Roof Height – (default 6)

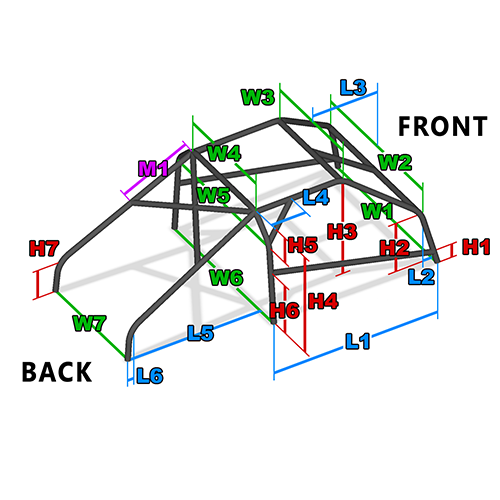

6-Point Cage - 3


Current Template Values:

  • L1 – Door Length – (default 48)
  • L2 – Windshield Front – (default 3)
  • L3 – Windshield Length – (default 24)
  • L4 – Door Brace – (default 10)
  • L5 - Rear Length - (default 36)
  • L6 - Rear Leg Offset - (default 3)


  • W1 – Front Width – (default 36)
  • W2 – Windshield Width – (default 36)
  • W3 – Roof Width – (default 24)
  • W4 – Main Hoop Top – (default 24)
  • W5 – Main Hoop Mid – (defaults 32)
  • W6 - Main Hoop Base - (default 36)
  • W7 - Rear Width - (default 30)


  • H1 – Door Bar Front Height – (default 4)
  • H2 – Windshield Height – (default 12)
  • H3 – Front Roof Height – (default 30)
  • H4 – Hoop Height – (default 30)
  • H5 – Hoop Top Drop – (default 12)
  • H6 – Door Bar Rear Height – (default 12)
  • H7 – Rear Leg Height – (default 8)


  • M1 - X-Bar Size - (default 24)

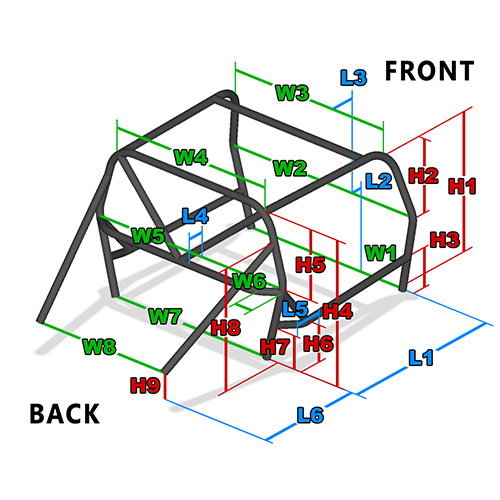

6-Point Cage - 4


Current Template Values:

  • L1 – Door Length – (default 36)
  • L2 – Front Leg Offset – (default 3)
  • L3 – Windshield Length – (default 3)
  • L4 – Seat Back Offset – (default 6)
  • L5 - Door Bar Offset Length - (default 6)
  • L6 - Rear Length - (default 24)


  • W1 – Front Leg Width – (default 44)
  • W2 – Windshield Width – (default 48)
  • W3 – Front Roof Width – (default 42)
  • W4 – Main Hoop Top – (default 42)
  • W5 – Main Hoop Mid – (defaults 44)
  • W6 - Seat Back Offset Width - (default 8)
  • W7 - Main Hoop Base - (default 40)
  • W8 - Rear Width - (default 40)


  • H1 – Front Height – (default 30)
  • H2 – Windshield Height – (default 12)
  • H3 – Door Bar Front – (default 6)
  • H4 – Hoop Height – (default 30)
  • H5 – Hoop Top Drop – (default 15)
  • H6 – Door Bar Drop – (default 6)
  • H7 – Door Bar Rear – (default 8)
  • H8 – Rear Strut to Hoop – (default 26)
  • H9 – Rear Strut Height – (default 4)

6-Point Cage - 5


Current Template Values:

  • L1 – Door Length – (default 36)
  • L2 – Windshield – (default 12)
  • L3 – Rear Length – (default 36)
  • L4 – Rear Leg Length – (default 2)


  • W1 – Front Leg Width – (default 44)
  • W2 – Windshield Width – (default 44)
  • W3 – Front Roof Width – (default 44)
  • W4 – Main Hoop Top – (default 44)
  • W5 – Main Hoop Mid – (defaults 48)
  • W6 - Main Hoop Base - (default 44)
  • W7 - Rear Strut Top - (default 44)
  • W8 - Rear Strut Mid - (default 44)
  • W9 - Rear Strut Base - (default 44)


  • H1 – Front Roof Height – (default 30)
  • H2 – Windshield Height – (default 12)
  • H3 – Hoop Height – (default 30)
  • H4 – Hoop Top Drop – (default 12)
  • H5 – Hoop Base Height – (default 4)
  • H6 – Rear Base Height – (default 2)
  • H7 – Rear Strut Top – (default 15)
  • H8 – Rear Strut Mid – (default 6)

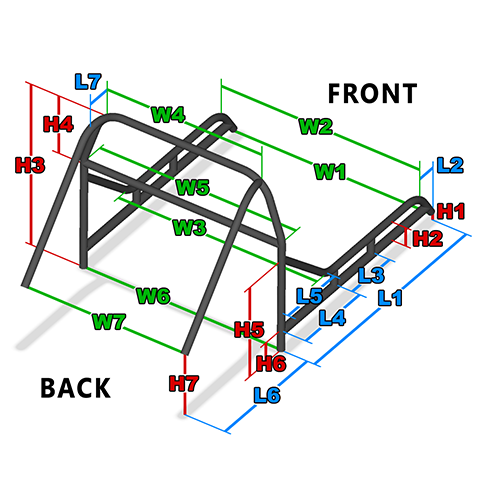

6-Point Cage - 6


Current Template Values:

  • L1 – Door Length – (default 36)
  • L2 – Front Leg – (default 6)
  • L3 – Between Door Supports – (default 8)
  • L4 – Rear Door Support Length – (default 12)
  • L5 - Main Hoop to First Bend - (default 10)
  • L6 - Rear Strut Length - (default 24)
  • L7 - Top of Rear Strut - (default 6)


  • W1 – Front Leg Width – (default 36)
  • W2 – Front Door Width – (default 36)
  • W3 – Rear Door Width – (default 36)
  • W4 – Main Hoop Top – (default 28)
  • W5 – Main Hoop Mid – (defaults 36)
  • W6 - Main Hoop Base - (default 36)
  • W7 - Rear Strut Width - (default 28)


  • H1 – Front Leg Offset – (default 2)
  • H2 – Door Height – (default 4)
  • H3 – Hoop Height – (default 30)
  • H4 – Hoop Top Drop – (default 12)
  • H5 – Rear Door Top – (default 12)
  • H6 – Rear Door Bottom – (default 4)
  • H7 – Rear Strut Offset – (default 8)

6-Point Cage - 7


Current Template Values:

  • L1 – Door Length – (default 36)
  • L2 – Door Bend – (default 6)
  • L3 – Seat Back Offset Length – (default 6)
  • L4 – Rear Strut Length – (default 24)


  • W1 – Front Leg Base Width – (default 36)
  • W2 – Front Leg Width – (default 36)
  • W3 – Door Width – (default 36)
  • W4 – Hoop Top Width – (default 28)
  • W5 – Hoop Mid Width – (defaults 36)
  • W6 - Hoop Base Width - (default 28)
  • W7 - Seat Back Offset Width - (default 6)
  • W8 - Rear Strut Width - (default 28)


  • H1 – Front Leg Height – (default 4)
  • H2 – Door Height – (default 15)
  • H3 – Hoop Height – (default 30)
  • H4 – Hoop Top Drop – (default 15)
  • H5 – Rear Strut Offset – (default 4)


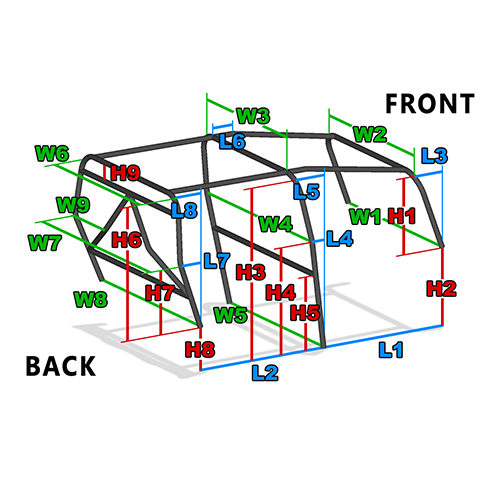

6-Point Cage - 8


Current Template Values:

  • L1 – Front Length – (default 36)
  • L2 – Rear Length – (default 36)
  • L3 – Windshield Length – (default 10)
  • L4 – Main Hoop Mid Offset – (default 4)
  • L5 - Main Hoop Top Offset - (default 6)
  • L6 - Roof Bend Length - (default 6)
  • L7 - Rear Mid Offset - (default 6)
  • L8 - Rear Top Offset - (default 6)


  • W1 – Front Hoop Base – (default 36)
  • W2 – Front Hoop Top – (default 36)
  • W3 – Main Hoop Top – (default 36)
  • W4 – Main Hoop Mid – (default 40)
  • W5 – Main Hoop Base – (defaults 40)
  • W6 - Rear Hoop Top - (default 36)
  • W7 - Rear Hoop Mid - (default 36)
  • W8 - Rear hoop Base - (default 36)
  • W9 - 'V'-Bar Offset - (default 10)


  • H1 – Windshield Height – (default 20)
  • H2 – Front Offset – (default 20)
  • H3 – Main Hoop Height – (default 30)
  • H4 – Main Hoop Mid – (default 12)
  • H5 – Seat Back Height – (default 4)
  • H6 – Rear Hoop Height – (default 2)
  • H7 – Rear Hoop Mid – (default 15)
  • H8 – Rear Offset – (default 6)
  • H9 – Rear Support Top – (default 6)

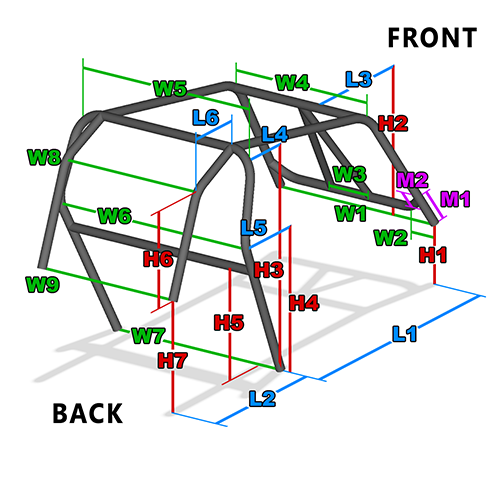

6-Point Cage - 9


Current Template Values:

  • L1 – Front Length – (default 36)
  • L2 – Rear Length – (default 24)
  • L3 – Windshield Length – (default 15)
  • L4 – Main Hoop Top Length – (default 4)
  • L5 - Main Hoop Mid Length - (default 6)
  • L6 - Rear Bend Length - (default 10)


  • W1 – Front Leg Width – (default 36)
  • W2 – Windshield Bar Offset – (default 6)
  • W3 – 'V'-Bar Width – (default 8)
  • W4 – Front Roof Width – (default 28)
  • W5 – Hoop Top Width – (default 36)
  • W6 - Hoop Mid Width - (default 36)
  • W7 - Hoop Base Width - (default 36)
  • W8 - Rear Strut Bend Width - (default 28)
  • W9 - Rear Strut Base - (default 28)


  • H1 – Front Leg Offset – (default 6)
  • H2 – Windshield Height – (default 24)
  • H3 – Main Hoop Height – (default 36)
  • H4 – Main Hoop Mid – (default 18)
  • H5 – Seat Back Height – (default 15)
  • H6 – Rear Strut Bend Height – (default 15)
  • H7 – Rear Strut Offset – (default 15)


  • M1 - Windshield Bar Length - (default 6)
  • M2 - Windshield Bar Offset - (default 4)

6-Point Cage - 10


Current Template Values:

  • L1 – Front Length – (default 36)
  • L2 – Rear Length – (default 36)
  • L3 – Windshield Length – (default 12)
  • L4 – Main Hoop Top Length – (default 8)
  • L5 - Main Hoop Mid Length - (default 6)


  • W1 – Front Leg Width – (default 36)
  • W2 – Front Roof Width – (default 36)
  • W3 – Hoop Top Width – (default 36)
  • W4 – Hoop Mid Width – (default 36)
  • W5 – Hoop Base Width – (default 36)
  • W6 - Rear Strut Width - (default 36)


  • H1 – Windshield Height – (default 8)
  • H2 – Front Offset – (default 28)
  • H3 – Main Hoop Height – (default 4)
  • H4 – Main Hoop Mid – (default 36)
  • H5 – Seat Back Height – (default 20)
  • H6 – Rear Hoop Height – (default 12)
  • H7 – Rear Hoop Mid – (default 6)
  • H8 – Rear Offset – (default 6)

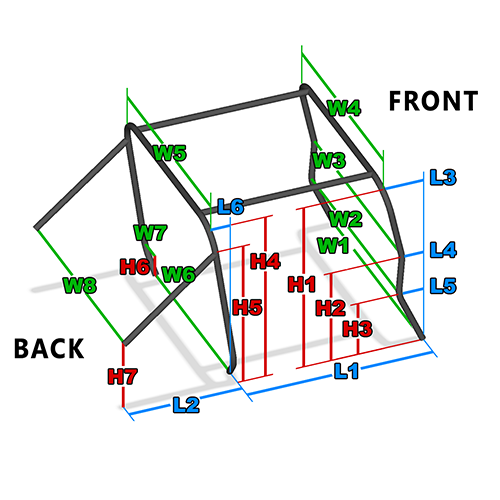

6-Point Cage - 11


Current Template Values:

  • L1 – Front Length – (default 36)
  • L2 – Rear Length – (default 24)
  • L3 – Dashboard Mid Length – (default 12)
  • L4 – Dashboard Top Length – (default 4)
  • L5 - Windshield Length - (default 6)
  • L6 - Main Hoop Length - (default 10)


  • W1 – Front Leg Width – (default 36)
  • W2 – Dashboard Mid Width – (default 36)
  • W3 – Dashboard Top Width – (default 36)
  • W4 – Windshield Width – (default 36)
  • W5 – Hoop Top Width – (default 36)
  • W6 - Hoop Mid Offset - (default 32)
  • W7 - Hoop Base Width - (default 4)
  • W8 - Rear Strut Width - (default 36)


  • H1 – Front Leg Offset – (default 30)
  • H2 – Dashboard Height – (default 15)
  • H3 – Windshield Height – (default 8)
  • H4 – Main Hoop Height – (default 30)
  • H5 – Rear Strut Height – (default 24)
  • H6 – Main Hoop Mid – (default 6)
  • H7 – Rear Strut Offset – (default 10)

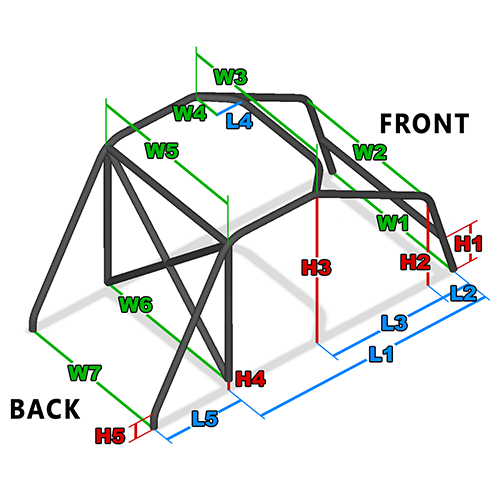

6-Point Cage - 12


Current Template Values:

  • L1 – Front Leg Length – (default 60)
  • L2 – Front Support Length – (default 18)
  • L3 – Windshield Length – (default 36)
  • L4 – Windshield Hoop Length – (default 10)
  • L5 - Rear Leg Length - (default 36)


  • W1 – Front Leg Width – (default 48)
  • W2 – Front Bend Width – (default 48)
  • W3 – Front Roof Width – (default 48)
  • W4 – Windshield Hoop Leg Width – (default 10)
  • W5 – Rear Roof Width – (default 48)
  • W6 - Center Leg Offset - (default 48)
  • W7 - Rear Leg Width - (default 48)


  • H1 – Front Crossbar Height – (default 12)
  • H2 – Front Support Height – (default 40)
  • H3 – Front Roof Height – (default 60)
  • H4 – Rear Roof Height – (default 60)
  • H5 – Rear Leg Bend Height – (default 20)

6-Point Cage - 13


Current Template Values:

  • L1 – Front Leg Length – (default 36)
  • L2 – Rear Leg Length – (default 36)
  • L3 – Front Roof Length – (default 12)
  • L4 – Front Cross Bar Bend Length – (default 12)
  • L5 - Middle Roof Length - (default 2)
  • L6 – Rear Cross Bar Bend Length – (default 12)
  • L7 - Rear Roof Length - (default 6)


  • W1 – Front Leg Width – (default 48)
  • W2 – Front Leg Bend Width – (default 48)
  • W3 – Front Roof Width – (default 44)
  • W4 – Middle Roof Width – (default 48)
  • W5 – Front Cross Bar Width – (default 12)
  • W6 - Middle Leg Bend Width - (default 48)
  • W7 - Middle Leg Width - (default 40)
  • W8 – Rear Roof Width – (default 48)
  • W9 - Rear Cross Bar Width - (default 38)
  • W10 - Rear Leg Width - (default 48)

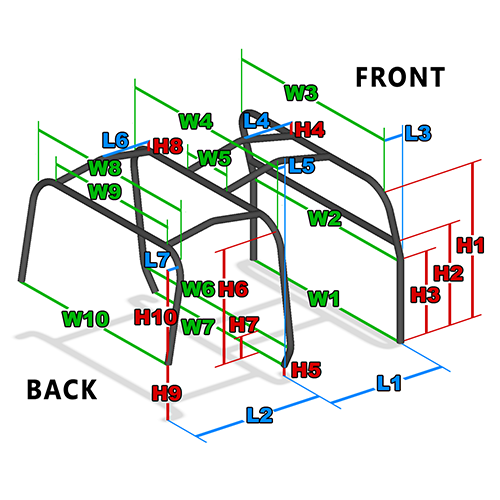

  • H1 – Front Roof Height – (default 48)
  • H2 – Front Brace Height – (default 26)
  • H3 – Front Leg Bend Height – (default 24)
  • H4 – Front Cross Bar Bend Height – (default 8)
  • H5 – Middle Leg Height – (default 4)
  • H6 – Middle Roof Height – (default 48)
  • H7 – Middle Left Bend Height – (default 12)
  • H8 – Rear Cross Bar Bend Height – (default 8)
  • H9 – Rear Leg Height – (default 24)
  • H10 – Rear Roof Height – (default 56)

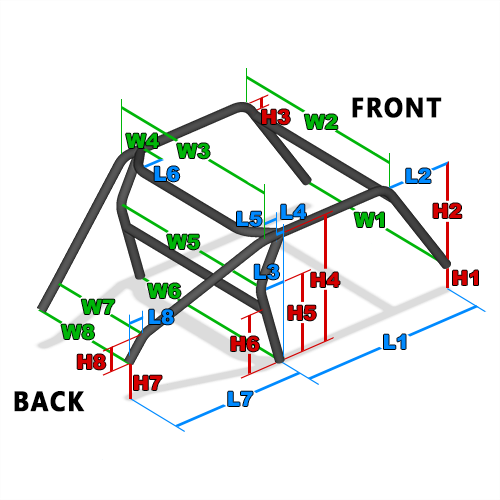

6-Point Cage - 14


Current Template Values:

  • L1 – Front Leg Length – (default 56)
  • L2 – Front Roof Length – (default 24)
  • L3 – Mid Leg Bend Length – (default 12)
  • L4 – Mid Leg Joint Length – (default 6)
  • L5 - Main Rear Roof Bend Length - (default 12)
  • L6 – Rear Cross Bar Length – (default 8)
  • L7 - Rear Leg Length - (default 48)
  • L8 - Rear Leg Bend Length - (default 0)


  • W1 – Front Leg Width – (default 48)
  • W2 – Front Roof Width – (default 48)
  • W3 – Rear Roof Width – (default 48)
  • W4 – Rear Cross Bar Bend Width – (default 12)
  • W5 – Mid Leg Bend Width – (default 48)
  • W6 - Mid Leg Width - (default 48)
  • W7 - Rear Leg Bend Width - (default 36)
  • W8 – Rear Leg Width – (default 36)


  • H1 – Front Leg Height – (default 8)
  • H2 – Front Roof Height – (default 48)
  • H3 – Front Brace Height – (default 4)
  • H4 – Rear Roof Height – (default 48)
  • H5 – Mid Leg Bend Height – (default 24)
  • H6 – Rear Brace Height – (default 20)
  • H7 – Rear Leg Height – (default 8)
  • H8 – Rear Leg Bend Height – (default 8)

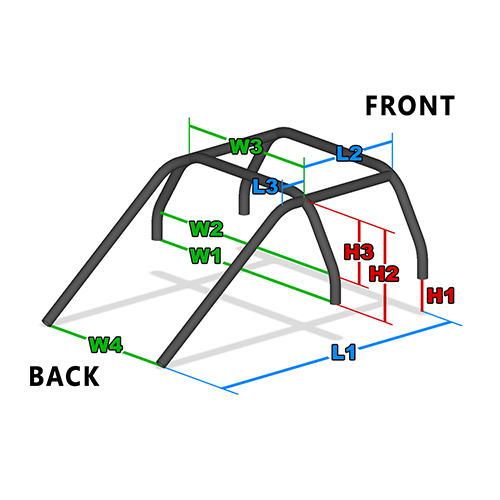

6-Point Cage - 15


Current Template Values:

  • L1 – Total Length – (default 84)
  • L2 – Front Leg Length – (default 32)
  • L3 – Rear Leg Bend Length – (default 8)


  • W1 – Leg Width – (default 56)
  • W2 – Leg Bend Width – (default 56)
  • W3 – Roof Width – (default 32)
  • W4 – Rear Leg Width – (default 38)


  • H1 – Front Leg Height – (default 10)
  • H2 – Roof Height – (default 24)
  • H3 – Leg Bend Height – (default 12)



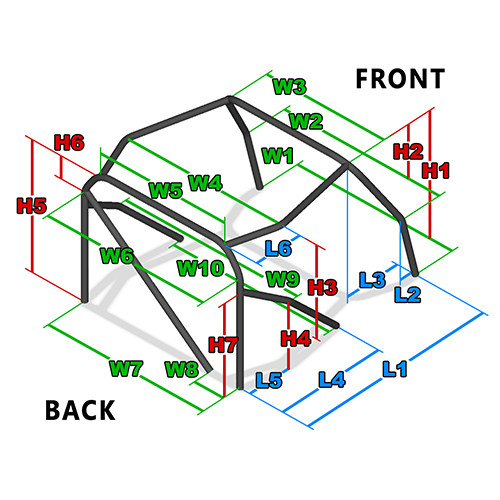

7-Point Cage


Current Template Values:

  • L1 – Total Length – (default 48)
  • L2 – Front Leg – (default 4)
  • L3 – Windshield Length – (default 12)
  • L4 – Door Bar Length – (default 30)
  • L5 - Door Bar Offset Length - (default 18)
  • L6 - Roof Mid Offset Length - (default 8)


  • W1 – Front Hoop Base – (default 48)
  • W2 – Front Hoop Mid – (default 44)
  • W3 – Front Hoop Top – (default 42)
  • W4 – Roof Width – (default 48)
  • W5 – Main Hoop Top – (default 42)
  • W6 - Main Hoop Mid - (default 48)
  • W7 - Main Hoop Base - (default 48)
  • W8 - Hoop Strut Offset - (default 6)
  • W9 - Door Mid Width - (default 50)
  • W10 - Door Base Width - (default 44)


  • H1 – Front Hoop Height – (default 36)
  • H2 – Front Hoop Top Drop – (default 18)
  • H3 – Roof Mid Height – (default 36)
  • H4 – Door Mid Height – (default 12)
  • H5 – Main Hoop Height – (default 36)
  • H6 – Main Hoop Top Drop – (default 8)
  • H7 – Door to Hoop Height – (default 18)

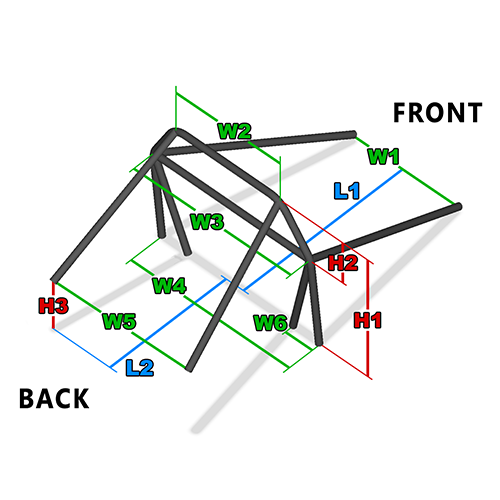

8-Point Bar


Current Template Values:

  • L1 – Front Length – (default 48)
  • L2 – Rear Length – (default 36)


  • W1 – Front Width – (default 36)
  • W2 – Roof Width – (default 24)
  • W3 – Seat Width – (default 36)
  • W4 – Door Width – (default 48)
  • W5 – Rear Width – (default 36)
  • W6 - Strut Offset - (default 6)


  • H1 – Total Height – (default 36)
  • H2 – Door Height – (default 24)
  • H3 – Rear Height – (default 6)





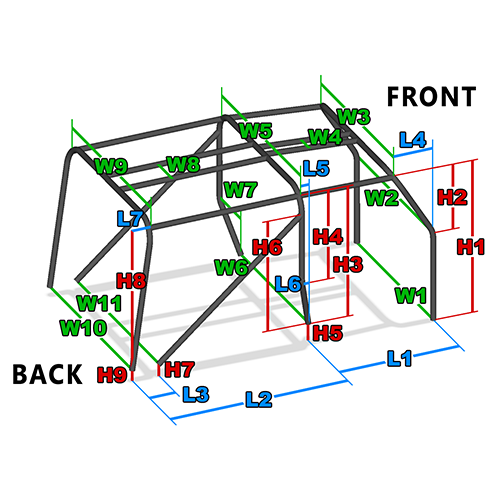

8-Point Cage - 1


Current Template Values:

  • L1 – Front Length – (default 36)
  • L2 – Rear Length – (default 48)
  • L3 – Mid Strut Length – (default 8)
  • L4 – Windshield Length – (default 10)
  • L5 - Main Hoop Top Length - (default 4)
  • L6 - Main Hoop Mid Length - (default 4)
  • L7 - Rear Top Length - (default 6)


  • W1 – Front Hoop Base – (default 36)
  • W2 – Front Hoop Mid – (default 36)
  • W3 – Front Hoop Top – (default 36)
  • W4 – Front Roof Supports – (default 4)
  • W5 – Main Hoop Top – (default 36)
  • W6 - Main Hoop Base - (default 30)
  • W7 - Main Hoop Mid Offset - (default 6)
  • W8 - Rear Roof Supports - (default 6)
  • W9 - Rear Hoop Top - (default 36)
  • W10 - Rear Hoop Base - (default 36)
  • W11 - Strut Base - (default 36)


  • H1 – Front Height – (default 36)
  • H2 – Windshield Height – (default 15)
  • H3 – Main Hoop Height – (default 32)
  • H4 – Main Hoop Mid Height – (default 24)
  • H5 – Main Hoop Offset – (default 4)
  • H6 – Strut Height – (default 24)
  • H7 – Strut Offset – (default 4)
  • H8 – Rear Height – (default 32)
  • H9 – Rear Offset – (default 4)

10-Point Cage


Current Template Values:

  • L1 – Door Length – (default 48)
  • L2 – Front Leg Offset – (default 3)
  • L3 – Windshield Length – (default 18)
  • L4 – Roof Support Bend Offset – (default 8)
  • L5 - Roof Support Start Offset - (default 4)
  • L6 - Rear Length - (default 24)
  • L7 - Rear Bend Offset - (default 10)


  • W1 – Front Leg Width – (default 36)
  • W2 – Windshield Width – (default 36)
  • W3 – Front Roof Width – (default 36)
  • W4 – Roof Support Offset Width – (default 6)
  • W5 – Main Hoop Top – (default 36)
  • W6 - Main Hoop Mid - (default 48)
  • W7 - Main Hoop Base - (default 36)
  • W8 - Rear Mid Width - (default 48)
  • W9 - Rear Base Width - (default 44)


  • H1 – Front Leg Height – (default 12)
  • H2 – Front Roof Height – (default 30)
  • H3 – Hoop Height – (default 34)
  • H4 – Hoop Top Drop – (default 15)
  • H5 – Rear Mid Height – (default 12)


  • M1 - Windshield Length - (default 8)

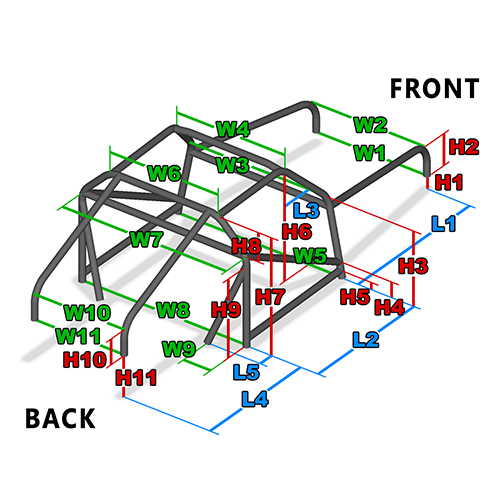

10-Point Cage - 1


Current Template Values:

  • L1 – Front Length – (default 36)
  • L2 – Door Length – (default 36)
  • L3 – Windshield Length – (default 15)
  • L4 – Rear Length – (default 36)
  • L5 - Hoop Strut Offset - (default 4)


  • W1 – Front Leg Base Width – (default 36)
  • W2 – Windshield Bar Offset – (default 36)
  • W3 – Windshield Width – (default 36)
  • W4 – Front Roof Width – (default 30)
  • W5 – A-Pillar Base Width – (default 40)
  • W6 - Hoop Top Width - (default 30)
  • W7 - Hoop Mid Width - (default 40)
  • W8 - Hoop Base Width - (default 40)
  • W9 - Hoop Strut Offset Width - (default 6)
  • W10 - Rear Strut Mid Width - (default 28)
  • W11 - Rear Strut Base Width - (default 28)


  • H1 – Front Leg Offset – (default 4)
  • H2 – Front Leg Height – (default 6)
  • H3 – Windshield Height – (default 15)
  • H4 – Door Bar Front Height – (default 6)
  • H5 – Bottom Door Height – (default 4)
  • H6 – Front Roof Height – (default 24)
  • H7 – Hoop Height – (default 24)
  • H8 – Hoop Top Drop – (default 8)
  • H9 – Hoop Strut Height – (default 12)
  • H10 – Rear Leg Height – (default 6)
  • H11 – Rear Leg Offset – (default 8)

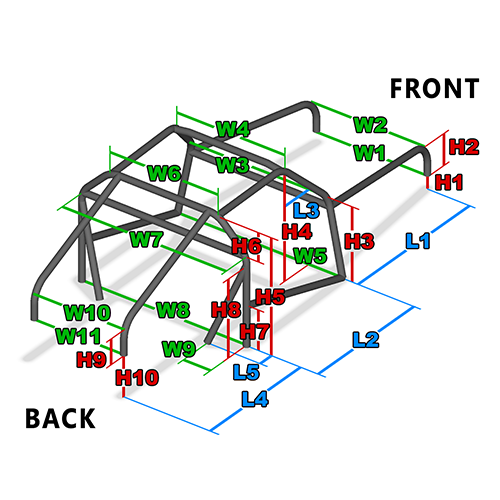

12-Point Cage


Current Template Values:

  • L1 – Front Length – (default 36)
  • L2 – Door Length – (default 36)
  • L3 – Windshield Length – (default 15)
  • L4 – Rear Length – (default 36)
  • L5 - Hoop Strut Offset - (default 4)


  • W1 – Front Leg Base Width – (default 36)
  • W2 – Front Leg Mid Width – (default 36)
  • W3 – Windshield Width – (default 36)
  • W4 – Front Roof Width – (default 30)
  • W5 – A-Pillar Base Width – (default 40)
  • W6 - Hoop Top Width - (default 30)
  • W7 - Hoop Mid Width - (default 40)
  • W8 - Hoop Base Width - (default 40)
  • W9 - Hoop Strut Offset Width - (default 6)
  • W10 - Rear Strut Mid Width - (default 28)
  • W11 - Rear Strut Base Width - (default 28)


  • H1 – Front Leg Offset – (default 4)
  • H2 – Front Leg Height – (default 6)
  • H3 – Windshield Height – (default 15)
  • H4 – Front Roof Height – (default 24)
  • H5 – Hoop Height – (default 24)
  • H6 – Hoop Top Drop – (default 8)
  • H7 – Door Height – (default 8)
  • H8 – Hoop Strut Height – (default 12)
  • H9 – Rear Leg Height – (default 6)
  • H10 – Rear Leg Offset – (default 8)
